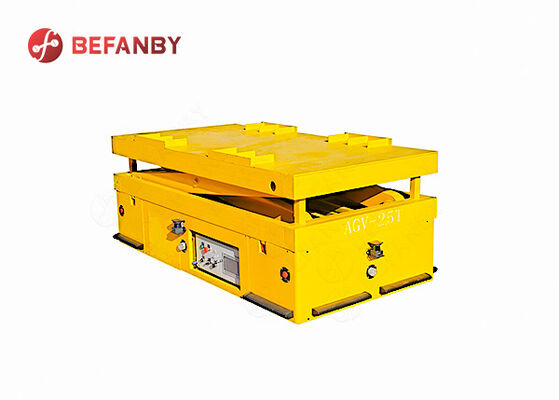

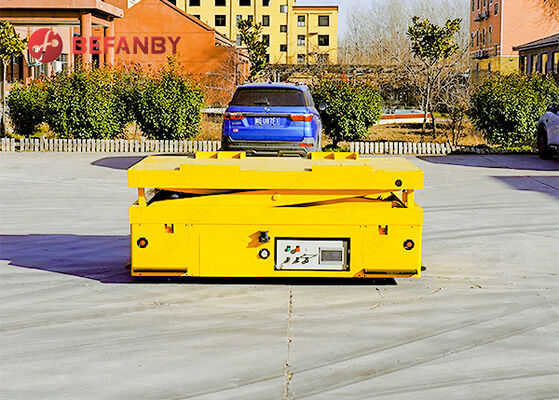

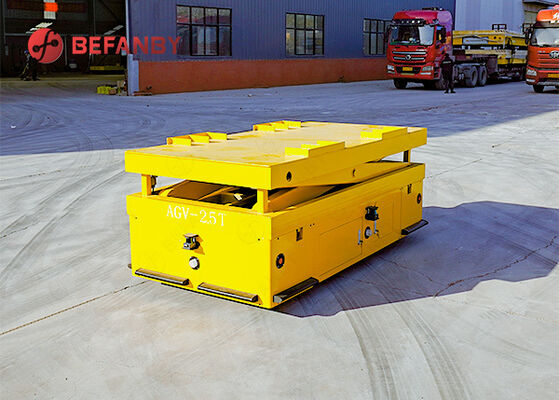

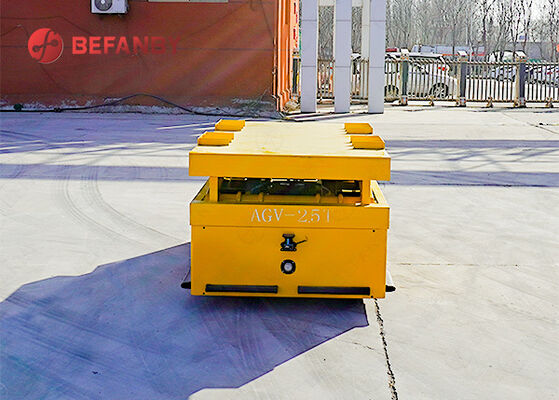

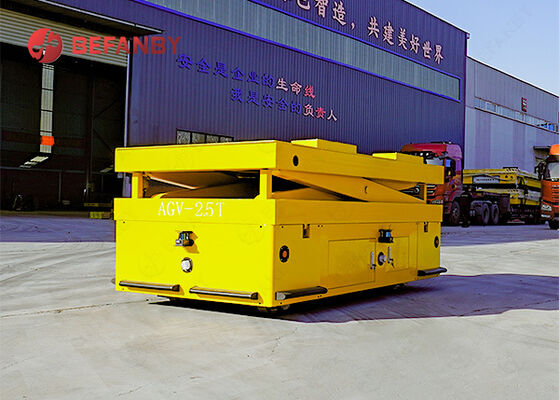

2.5T Capacity Automatic Guided Vehicle with Scissor-Lift Mechanism and Intelligent Navigation System

  • 2.5T Capacity Automatic Guided Vehicle with Scissor-Lift Mechanism and Intelligent Navigation System
  • 2.5T Capacity Automatic Guided Vehicle with Scissor-Lift Mechanism and Intelligent Navigation System
  • 2.5T Capacity Automatic Guided Vehicle with Scissor-Lift Mechanism and Intelligent Navigation System
  • 2.5T Capacity Automatic Guided Vehicle with Scissor-Lift Mechanism and Intelligent Navigation System
  • 2.5T Capacity Automatic Guided Vehicle with Scissor-Lift Mechanism and Intelligent Navigation System
  • 2.5T Capacity Automatic Guided Vehicle with Scissor-Lift Mechanism and Intelligent Navigation System
Lugar de origen Henán, China
Nombre de la marca BEFANBY
Certificación CE,SGS,ISO9001
Número de modelo agv
Cantidad de orden mínima 1 juego/juegos
Precio Negociable
Detalles de empaquetado El carro de transferencia estará empaquetado por la lona, ​​las piezas estarán empaquetadas y la caj
Tiempo de entrega Entrega de 20-30 días como de costumbre
Condiciones de pago LC, T/T, Unión Occidental
Capacidad de la fuente 1500 set/sets, por año
Datos del producto
Color Personalizado Garantía 24 meses
Capacidad de carga Personalizado Fuente de alimentación Funciona con pilas
Puerto Qingdao/Tianjin/Shanghai Solicitud Trabajo aéreo, fábrica, taller, sitio de construcción
Materiales Acero
Deja un mensaje
Descripción de producto
Capacity 2.5T Automatic Guided Vehicle with Lift Device
Product Overview
The AGV (Automated Guided Vehicle) Intelligent Trackless Transporter is an advanced piece of automated material handling equipment that incorporates intelligent navigation systems and scissor-lift capabilities. It is widely utilized across various sectors, including manufacturing, production lines, and factory operations. Thanks to its flexible and highly efficient characteristics, it significantly enhances both the efficiency and safety of material handling processes.
2.5T Capacity Automatic Guided Vehicle with Scissor-Lift Mechanism and Intelligent Navigation System 0
Product Features
2.5T Capacity Automatic Guided Vehicle with Scissor-Lift Mechanism and Intelligent Navigation System 1
  • Scissor-Lift Mechanism: Flexible lifting for diverse applications with high stability and load-bearing capacity, ensuring material safety during operations and allowing height adjustments for different working environments.
Intelligent Navigation System
2.5T Capacity Automatic Guided Vehicle with Scissor-Lift Mechanism and Intelligent Navigation System 2
The AGV transfer cart is equipped with an advanced intelligent navigation system that integrates multiple technologies—including LiDAR, vision sensors, and inertial navigation—to enable autonomous obstacle avoidance, precise positioning, and intelligent path planning. The system monitors the vehicle's position in real-time, ensuring stable operation within complex environments without the need for human intervention.
Technical Specifications
Model KPX-10t KPX-16t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load (t) 10 16 25 30 40 50 63 80 100 150
Table Size - Length (mm) 3600 4000 4500 4500 5000 5500 5600 6000 6500 10000
Table Size - Width (mm) 2000 2000 2200 2200 2500 2500 2500 2600 2800 3000
Table Size - Height (mm) 500 550 600 600 650 650 700 800 900 1200
Wheel Base (mm) 2600 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauge (mm) 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter (mm) 300 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 50 75 75 75 75
Running Speed (m/min) 25 20 20 20 20 20 20 20 20 18
Motor Power (kW) 2 2.2 3.5 4 5 6.3 8 10 15 15
Battery Capacity (Ah) 160 180 250 250 300 330 400 400 440 600
Battery Voltage (V) 48 48 48 48 48 48 48 72 72 72
Max Wheel Load (kN) 42.6 64.5 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight (t) 4.2 5.5 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8
Company Profile
2.5T Capacity Automatic Guided Vehicle with Scissor-Lift Mechanism and Intelligent Navigation System 3 2.5T Capacity Automatic Guided Vehicle with Scissor-Lift Mechanism and Intelligent Navigation System 4 2.5T Capacity Automatic Guided Vehicle with Scissor-Lift Mechanism and Intelligent Navigation System 5
Additional Features
2.5T Capacity Automatic Guided Vehicle with Scissor-Lift Mechanism and Intelligent Navigation System 6
Shipping & Delivery
2.5T Capacity Automatic Guided Vehicle with Scissor-Lift Mechanism and Intelligent Navigation System 7
Related Products
2.5T Capacity Automatic Guided Vehicle with Scissor-Lift Mechanism and Intelligent Navigation System 8
Frequently Asked Questions
Q: How can I operate the transfer cart?
A: Please don't worry, dear friend. The English user manual and parts manual will be delivered with your items together.
Q: How to ensure your product quality?
A: We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary, our installation engineer will go to your factory to guide the installation.
Q: Whether you can offer customized transfer cart?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
Q: Whether there is professional technician assist our installation?
A: Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
