10 Ton Long Lifetime Steel Welding Frame Transfer Vehicle With Battery

  • 10 Ton Long Lifetime Steel Welding Frame Transfer Vehicle With Battery
  • 10 Ton Long Lifetime Steel Welding Frame Transfer Vehicle With Battery
  • 10 Ton Long Lifetime Steel Welding Frame Transfer Vehicle With Battery
  • 10 Ton Long Lifetime Steel Welding Frame Transfer Vehicle With Battery
  • 10 Ton Long Lifetime Steel Welding Frame Transfer Vehicle With Battery
  • 10 Ton Long Lifetime Steel Welding Frame Transfer Vehicle With Battery
Place of Origin Henan,China
Nombre de la marca BEFANBY
Certificación CE,SGS,ISO9001
Model Number lift platform
Minimum Order Quantity 1 set/sets
Precio Negociable
Packaging Details The movable lifting platform will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Delivery Time 20-30 days as usual delivery
Payment Terms L/C,T/T,Western Union
Supply Ability 1500 set/sets, per year

Éntreme en contacto con gratis las muestras y los vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Color Customized Warranty 24 months
Load capacity Customized Power supply Battery Operated
Port Qingdao/Tianjin/Shanghai Application factory,workshop,construction site
Materials Steel
Deja un mensaje
Descripción de producto

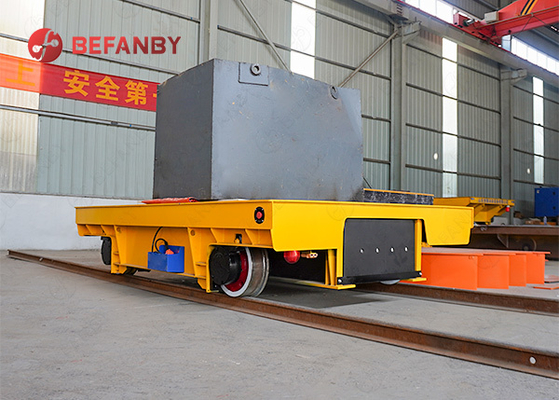

10 Ton Long Lifetime Steel Welding Frame Transfer Vehicle With Battery

Product Description

Based on customer requirements, we designed and delivered two 15-ton battery-powered rail transporters with the following configuration:

Power System: Equipped with a high-capacity industrial battery pack, the vehicle can operate continuously for over 8 hours on a single charge.

Construction: Utilizes a thickened welded steel structure with a flat surface. Customizable load capacities and dimensions are available.

Control: Dual operation modes, including wireless remote control and joystick control, provide flexibility and convenience.

Safety Design: The vehicle is equipped with an audible and visual alarm, an emergency stop button, automatic limit switches, and automatic stop on human presence.


10 Ton Long Lifetime Steel Welding Frame Transfer Vehicle With Battery 0

Product Parameter

Model KPT-2T KPT-5T KPT-10T KPT-16T KPT-20T KPT-25T KPT-30T KPT-40T KPT-50T KPT-63T KPT-80T KPT-100T KPT-150
Rated load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Heigth(H) 500 550 550 600 600 650 650 700 700 800 900 1000 1200
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rai Ilnner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Dia.(mm) Φ270 Φ300 Φ300 Φ350 Φ350 Φ400 Φ400 Φ500 Φ500 Φ600 Φ600 Φ600 Φ600
Wheel Quantity(pcs) 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed(mm) 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power(kw) 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Running distance(m) 25 25 25 25 30 30 50 50 50 50 50 50 50
Max Wheel load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Wight(t) 2.5 3.5 4 5.2 5.6 6.2 6.5 7.3 7.8 10.5 12.3 14.1 26.2
Recommend Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100


QU100



Our Company

10 Ton Long Lifetime Steel Welding Frame Transfer Vehicle With Battery 1

10 Ton Long Lifetime Steel Welding Frame Transfer Vehicle With Battery 2

10 Ton Long Lifetime Steel Welding Frame Transfer Vehicle With Battery 3

Product Feature

  • Smooth Operation: It operates along a fixed rails, eliminating path deviation and ensuring more stable transport. It can also operate on curved and S-shaped rails.
  • High Load Capacity: It can be designed with load capacities ranging from 1 to 100 tons, or even higher, based on your needs.
  • Automated Control: It supports wireless remote control, PLC control, and remote operation.
  • Customization: The tabletop can be equipped with hydraulic lifting devices, rotating platforms, protective devices, and more to meet individual needs.
  • Energy-Friendly: It is electrically powered, complying with green development requirements.

10 Ton Long Lifetime Steel Welding Frame Transfer Vehicle With Battery 4

Applications

10 Ton Long Lifetime Steel Welding Frame Transfer Vehicle With Battery 5

Steel Industry: Transporting heavy, high-temperature materials such as steel coils, profiles, and ladles.
Mechanical Manufacturing: Transporting workpieces or molds between workshops.
Automotive Industry: Transporting large parts and assembling components between production lines.
Warehousing and Logistics: Connecting to intelligent logistics equipment such as automated warehouses and sorting systems.

Shipping

10 Ton Long Lifetime Steel Welding Frame Transfer Vehicle With Battery 6
