Intelligent Material Handling Solution: Trackless Transfer Cart

  • Intelligent Material Handling Solution: Trackless Transfer Cart
  • Intelligent Material Handling Solution: Trackless Transfer Cart
  • Intelligent Material Handling Solution: Trackless Transfer Cart
  • Intelligent Material Handling Solution: Trackless Transfer Cart
  • Intelligent Material Handling Solution: Trackless Transfer Cart
  • Intelligent Material Handling Solution: Trackless Transfer Cart
Lugar de origen Henan, China
Nombre de la marca BEFANBY
Certificación CE,SGS,ISO9001
Número de modelo BWP
Cantidad de orden mínima 1 conjunto/conjuntos
Precio Negociable
Detalles de empaquetado El carro de transferencia estará empaquetado por la lona, ​​las piezas estarán empaquetadas y la caj
Tiempo de entrega Entrega de 20-30 días como de costumbre
Condiciones de pago LC, T/T, Unión Occidental
Capacidad de la fuente 1500 set/sets, por año

Éntreme en contacto con gratis las muestras y los vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Color Personalizado Garantía 24 meses
Capacidad de carga Personalizado Fuente de alimentación Funciona con pilas
Puerto Qingdao/Tianjin/Shanghai Aplicación Fábrica, taller, construcción de edificios, ventana de limpieza
Materiales Acero
Deja un mensaje
Descripción de producto

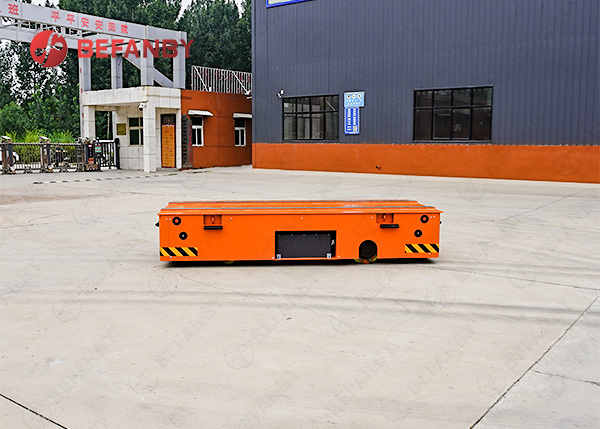

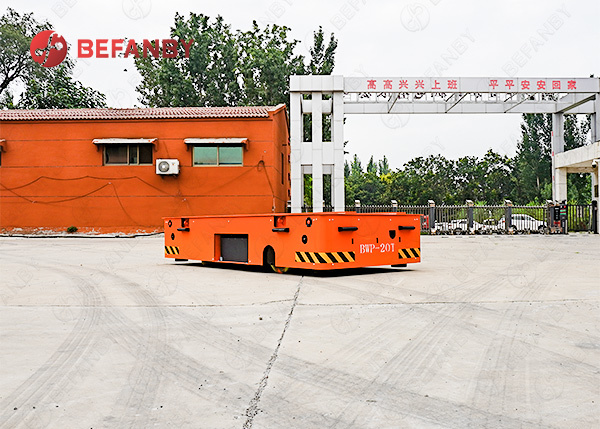

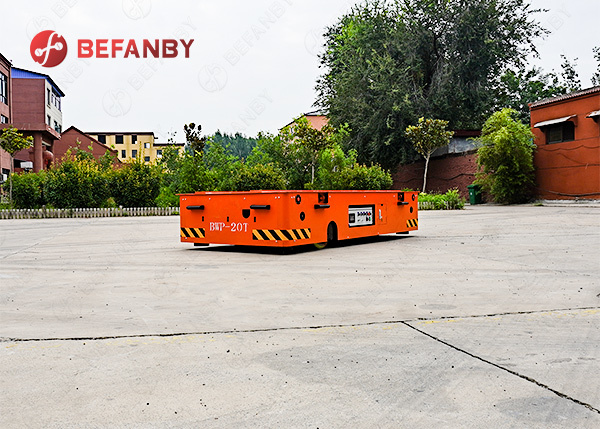

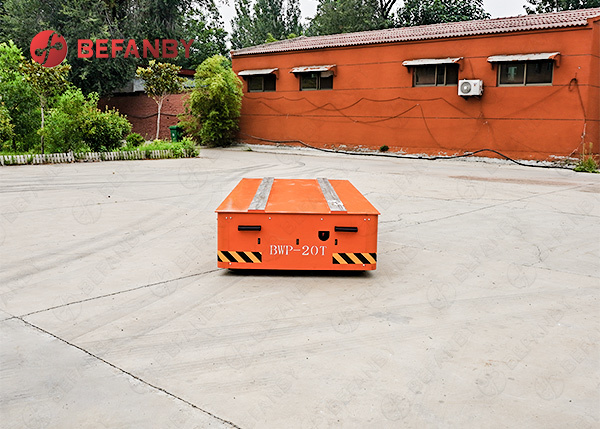

Intelligent Material Handling Solution: Trackless Transfer Cart

Product Description

The trackless transfer cart features a high-strength steel plate welded structure (steel profile splicing type), offering excellent overall rigidity and load-bearing capacity. The cart body mainly consists of the following parts:

Frame Structure: Utilizing a high-quality welded steel frame, it boasts strong anti-deformation capabilities and can bear loads ranging from 5 to over 100 tons.

Drive System: Equipped with a high-performance DC motor and reducer combination, and cast steel wheels with strong traction, ensuring smooth operation.

Steering System: Employing multi-wheel independent drive or optional omnidirectional Mecanum wheel design, it enables various driving modes including forward, backward, lateral movement, and stationary rotation.

Power System: Depending on requirements, it can be powered by rechargeable batteries or lithium batteries, supporting long-term continuous operation.

Control System: Equipped with wireless remote control and automatic navigation control, it allows for manual/automatic dual-mode switching; some models support laser navigation or magnetic strip navigation.

Safety System: Features audible and visual alarms, obstacle avoidance radar, and emergency stop buttons to ensure safe and reliable operation.




Intelligent Material Handling Solution: Trackless Transfer Cart 0



Product Details

Intelligent Material Handling Solution: Trackless Transfer Cart 1

Product Parameter

Product Name Model No. Power Supply Mode Load Capacity Other Items Usage
Rail Transfer Cart KPD Conductor Rail Load range 1-300ton, can be customized per client demand Running distance Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car KPX Battery Using frequency
Motorized Transfer Trolley KPJ Cable Drum Running distance
Busbar Powered Handling Cart KPC Busbar Working shop
Towed Rail Trailer KP Tractor 1-100t Working shop
Steerable Towed Car BWT Tractor Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. Working environment
Trackless Handling Machine BWP Battery Working path


Product Feature


Intelligent Material Handling Solution: Trackless Transfer Cart 2

No Track Required:Can be used directly on hard, smooth surfaces in the factory area, saving track construction costs and improving work efficiency.

High Operational Flexibility:Capable of multi-directional movement and in-situ rotation, easily adapting to narrow spaces or complex routes.

High Load Capacity:Sturdy vehicle structure, customizable to 5-ton, 10-ton, 30-ton, or even 100-ton load capacities.

High Level of Intelligence:Supports remote control, automatic stop upon human detection, automatic charging, route planning, and other intelligent functions.

Safe and Reliable:Equipped with multiple protection systems, ensuring smooth operation and low noise, suitable for various indoor and outdoor working environments.

Easy Maintenance:Simple structure, modular drive and control design, convenient maintenance, and long service life.

Applications

Intelligent Material Handling Solution: Trackless Transfer Cart 3


Company Profile

Intelligent Material Handling Solution: Trackless Transfer Cart 4


Intelligent Material Handling Solution: Trackless Transfer Cart 5




Intelligent Material Handling Solution: Trackless Transfer Cart 6


Related Products


Intelligent Material Handling Solution: Trackless Transfer Cart 7


FAQ

1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer car?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
