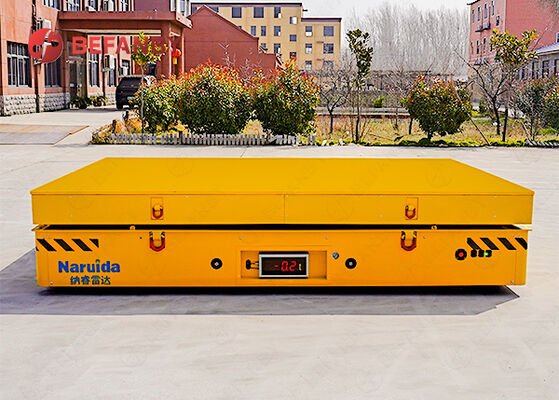

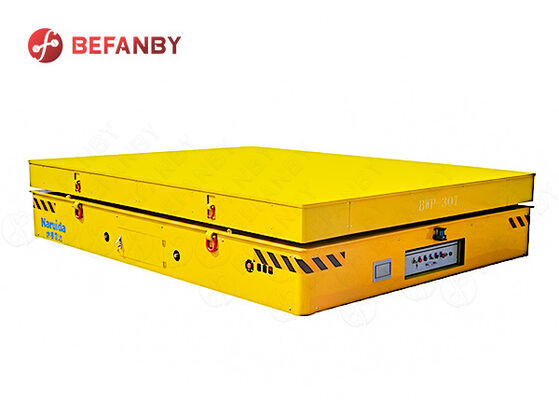

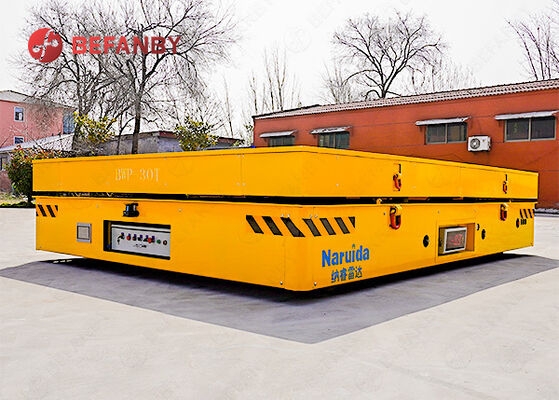

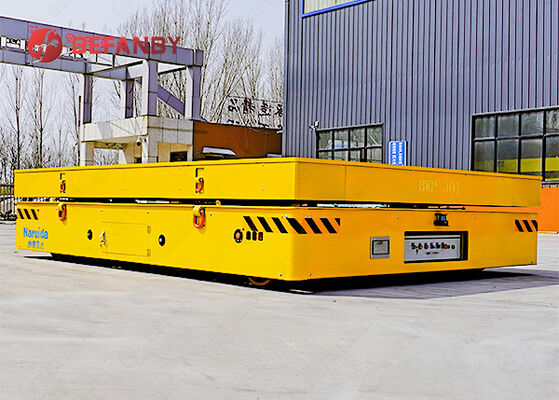

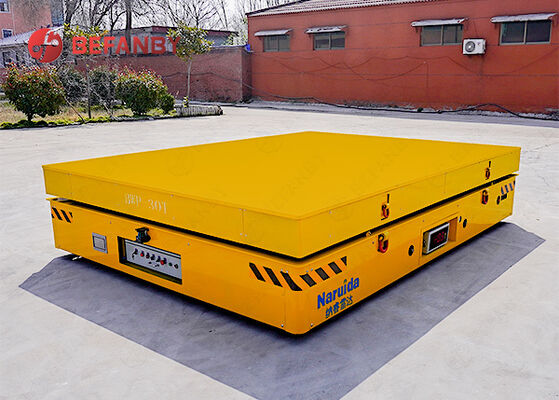

Easy Operation 30 Tonne Q235 Battery Powered Trackless Transfer Cart for Mold Factory
| Lugar de origen | Henan, China |
|---|---|
| Nombre de la marca | BEFANBY |
| Certificación | CE,SGS,ISO9001 |
| Número de modelo | BWP |
| Cantidad de orden mínima | 1 juego/juegos |
| Detalles de empaquetado | El vagón de traslado ferroviario será empacado por la lona, las piezas serán enviadas en la caja de |
| Tiempo de entrega | Entrega de 20-30 días como de costumbre |
| Condiciones de pago | LC, T/T, Unión Occidental |
| Capacidad de la fuente | 1000 juegos/juegos por año |
Datos del producto
| Material | Q235 | Capacidad de carga | 1-70T |
|---|---|---|---|
| Fuente de alimentación | potencia de los carretes de cable | Longitud de la tabla | 2000-5600 milímetros |
| Ancho de mesa | 1500-2500 milímetros | Potencia del motor | 1-6,3 kilovatios |
Descripción de producto
Easy Operation 30 Tonne Transfer Carts For Mold Factory
1. Product Introduce
In industries such as heavy manufacturing, machining, steel structure fabrication, and large-scale equipment assembly, the safe transport of large workpieces has long been a critical aspect of the production process. Thanks to their flexible maneuverability and robust load-bearing capacity, trackless transfer carts have emerged as essential equipment for internal logistics within modern factories. Requiring no fixed tracks, these battery-powered and motor-driven vehicles can operate freely across workshops, warehouses, and factory roadways.
2. Advantage
Designed specifically to meet the demands of transporting large workpieces, this trackless transfer cart features a high-strength steel frame structure that delivers exceptional load-bearing performance and stability. Its platform dimensions—including length and width—as well as its load capacity, can be fully customized to suit the specific dimensions of the workpieces being transported. The cart supports forward and reverse movement, turning, and multi-directional travel, enabling it to effortlessly navigate narrow aisles, complex workstations, and inter-workshop transport routes. Furthermore, based on client requirements, the cart can be equipped with additional features—such as safety guardrails, hydraulic lifting mechanisms, automated navigation systems, anti-collision protection, and wireless remote controls—to further enhance both transport safety and operational efficiency.
3. Technique Parameter
| Model | BWP-2t | BWP-5t | BWP-10t | BWP-16t | BWP-20t | BWP-25t | BWP-30t | BWP-40t | BWP-50t | BWP-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
4.Applications
5.BEFANBY Client
6.Our Company
7.FAQ
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer car?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
