20 Tonne Steel Tube Factory With V Frame Rail Transfer Carts

  • 20 Tonne Steel Tube Factory With V Frame Rail Transfer Carts
  • 20 Tonne Steel Tube Factory With V Frame Rail Transfer Carts
  • 20 Tonne Steel Tube Factory With V Frame Rail Transfer Carts
  • 20 Tonne Steel Tube Factory With V Frame Rail Transfer Carts
  • 20 Tonne Steel Tube Factory With V Frame Rail Transfer Carts
Lugar de origen Henan, China
Nombre de la marca BEFANBY
Certificación CE,SGS,ISO9001
Número de modelo KPT
Cantidad de orden mínima 1 conjunto/conjuntos
Precio Negociable
Detalles de empaquetado La plataforma elevadora móvil se embalará con lona, las piezas se enviarán en una caja de madera de
Tiempo de entrega Entrega de 20-30 días como de costumbre
Condiciones de pago L/C, T/T, Western Union
Capacidad de la fuente 1500 set/sets, por año

Éntreme en contacto con gratis las muestras y los vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Color Personalizado Garantía 24 meses
Capacidad de carga Personalizado Fuente de alimentación Con baterías
Puerto Qingdao/Tianjin/Shanghai Solicitud Trabajo aéreo, fábrica, taller, sitio de construcción
Materiales acero
Deja un mensaje
Descripción de producto

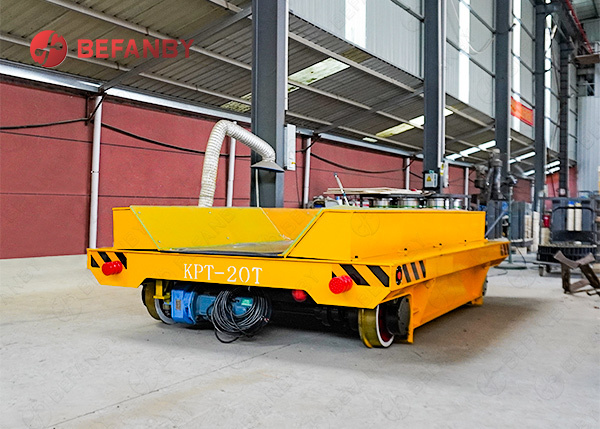

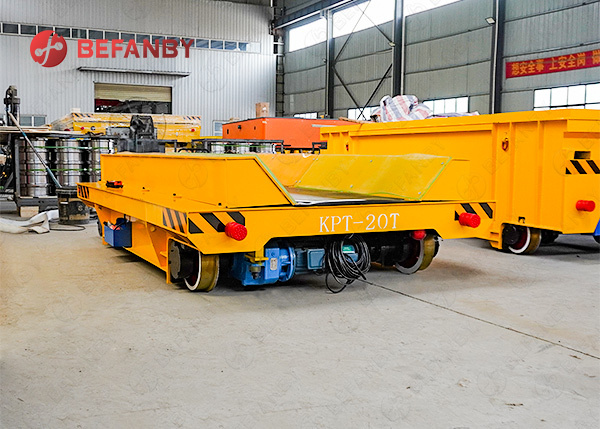

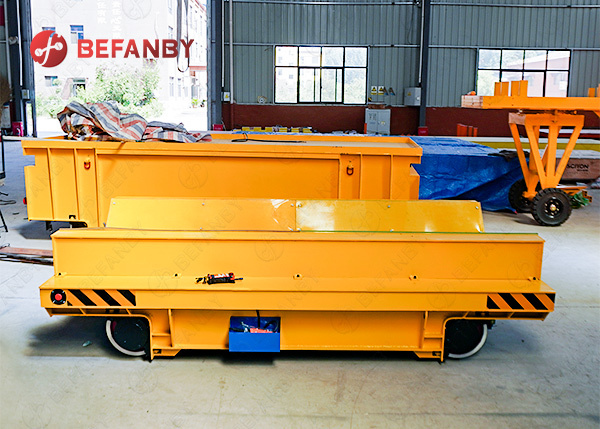

20 Tonne Steel Tube Factory With V Frame Rail Transfer Carts

Product Description

This vehicle utilizes a cable drum power supply, ensuring smooth operation and high load capacity. It is particularly suitable for high-temperature, explosion-proof environments, in-furnace production, and for the precise handling and docking of large-sized steel materials.

I. Power Supply and Operation System
The KPT series rail transport vehicle is powered by a mobile drag chain, ensuring continuous and stable power during round-trip operation. The mobile drag chain moves with the vehicle and is made of wear-resistant material, extending its service life.

II. Safety and Control System
Equipped with safety modules such as electrical protection devices, an audible and visual alarm system, anti-collision buffers, and an emergency stop switch. Control options include joystick control or wireless remote control for safe remote operation.



20 Tonne Steel Tube Factory With V Frame Rail Transfer Carts 0

Product Parameter

Product Name Model No. Power Supply Mode Load Capacity Other Items Usage
Rail Transfer Cart KPD Conductor Rail Load range 1-300ton, can be customized per client demand Running distance Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car KPX Battery Using frequency
Motorized Transfer Trolley KPJ Cable Drum Running distance
Busbar Powered Handling Cart KPC Busbar Working shop
Towed Rail Trailer KP Tractor 1-100t Working shop
Steerable Towed Car BWT Tractor Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. Working environment
Trackless Handling Machine BWP Battery Working path

III. Structural and Functional Features

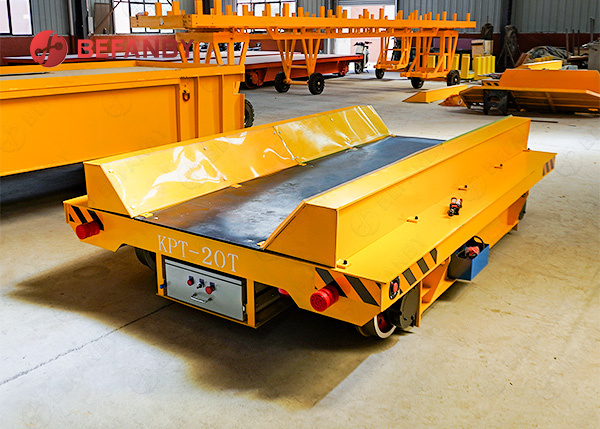

The vehicle platform utilizes a grooved or V-shaped support structure, customized to the diameter and length of the steel pipe. This effectively prevents rolling and displacement of the pipe, ensuring the safety of the operator and the operator during transport.

High-Strength Frame Design
The main beam utilizes a box-girder structure, with an overall load capacity of over 20 tons. The frame is heat-treated and spray-coated for rust prevention, ensuring strong torsion resistance and structural stability.

Products Details

20 Tonne Steel Tube Factory With V Frame Rail Transfer Carts 1

Basic Structural Components

1.Frame: Constructed of welded high-strength steel (a steel section splicing structure), it offers excellent load-bearing capacity and deformation resistance.
2.Electrical System: Utilizes an AC motor, intelligent electronic control box, and emergency stop button to drive and control the entire vehicle.
3.Drive System: The electric motor drives the wheels through a speed reducer, ensuring smooth and reliable operation.
4.Wheelset: Typically high-strength cast steel wheels adaptable to tracks of varying gauges.
5.Power System: Depending on the power supply method, it can be divided into battery-powered, busbar-powered, cable drum-powered, and low-voltage rail-powered.

Application

20 Tonne Steel Tube Factory With V Frame Rail Transfer Carts 2

Company Profile

20 Tonne Steel Tube Factory With V Frame Rail Transfer Carts 3

20 Tonne Steel Tube Factory With V Frame Rail Transfer Carts 4

20 Tonne Steel Tube Factory With V Frame Rail Transfer Carts 5

Product Features

20 Tonne Steel Tube Factory With V Frame Rail Transfer Carts 6

20 Tonne Steel Tube Factory With V Frame Rail Transfer Carts 7

Main Types

Sturdy structure and strong load-bearing capacity, specially designed for round materials such as steel pipes.

Continuous power supply, no charging required, suitable for long-term production line operation.

Smooth operation, precise positioning, and support for automated control interfaces.

Optional high-temperature protection configuration meets harsh working conditions.

Various customization options available: table size, gauge, safety devices, and load capacity can all be customized to meet your needs.

Shipping

20 Tonne Steel Tube Factory With V Frame Rail Transfer Carts 8

Related Products

20 Tonne Steel Tube Factory With V Frame Rail Transfer Carts 9

FAQ

Q: Whether you product can be customized?

A: Sure. All our products are customized as per customers’ requirement, because different products are with different requirements of specification. The proper solution will be provided according to your true demand.

Q: What is the size and load of this Rail Transfer Car?

A:The size and load of our this rail transfer car is customized design according to your requirement.

Q: How do transfer cart been shipped?

A: We export the transfer cart by sea or train with full container, LCL or in Bulk.

Q: What is the leading time, delivery term, and payment term?

A: Usually our leading time is 30 days.About the delivery term, we accept ,FOB, CIF. About the payment, we accept T/T or L/C, etc.

Q: Can we choose the power supply for industry transport cart?

A: Yes,such as the cable drum, battery powered ,low voltage powered, busbar powered ,trailing cable powered, etc.
