Best Price Mold Factory Uses Scissor Lift Material Transfer Cart

  • Best Price Mold Factory Uses Scissor Lift Material Transfer Cart
  • Best Price Mold Factory Uses Scissor Lift Material Transfer Cart
  • Best Price Mold Factory Uses Scissor Lift Material Transfer Cart
  • Best Price Mold Factory Uses Scissor Lift Material Transfer Cart
  • Best Price Mold Factory Uses Scissor Lift Material Transfer Cart
  • Best Price Mold Factory Uses Scissor Lift Material Transfer Cart
Lugar de origen Henan, China
Nombre de la marca BEFANBY
Certificación CE,SGS,ISO9001
Número de modelo KPJ
Cantidad de orden mínima 1 conjunto/conjuntos
Precio Negociable
Detalles de empaquetado El carro de transferencia estará empaquetado por la lona, ​​las piezas estarán empaquetadas y la caj
Tiempo de entrega Entrega de 20-30 días como de costumbre
Condiciones de pago L/C, T/T, Western Union
Capacidad de la fuente 1500 set/sets, por año

Éntreme en contacto con gratis las muestras y los vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Color personalizado Garantía 24 meses
Capacidad de carga personalizado Fuente de alimentación Operado Eléctricamente
Puerto Qingdao/Tianjin/Shanghai Solicitud Industria pesada, al aire libre, construcción
Materiales Acero
Deja un mensaje
Descripción de producto

Best Price Mold Factory Uses Scissor Lift Material Transfer Cart

Product Description

1. Strong Load Capacity, Sturdy and Stable
Designed specifically for mold handling, it offers a wide range of load capacities, from one to several dozen tons, easily handling large and medium-sized molds.
The scissor mechanism is constructed of high-strength steel, ensuring smooth lifting and lowering, ensuring the transport of materials at various heights.

2. Precise Lifting, Seamless Integration
Equipped with either a hydraulic or mechanical lifting system, it offers simple operation and customizable lifting heights, enabling seamless integration with production lines, workbenches, and other equipment.

3. Ultimate Maneuverability, Free-Rotation
Equipped with high-performance, non-slip, and wear-resistant cast steel wheels (optional and customizable), it offers lightweight maneuverability and a tight turning radius, enabling it to maneuver even in narrow workshop aisles.

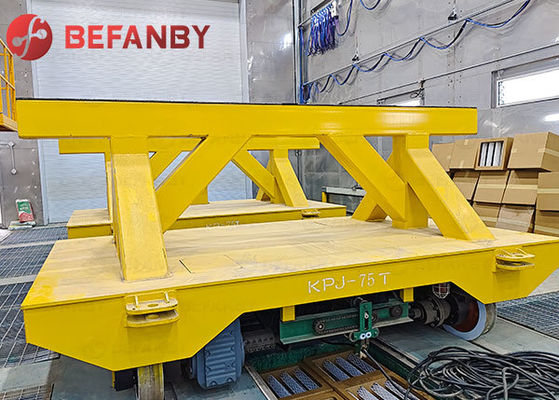

Best Price Mold Factory Uses Scissor Lift Material Transfer Cart 0

Product Parameter

Model KPT-2T KPT-5T KPT-10T KPT-16T KPT-20T KPT-25T KPT-30T KPT-40T KPT-50T KPT-63T KPT-80T KPT-100T KPT-150
Rated load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Heigth(H) 500 550 550 600 600 650 650 700 700 800 900 1000 1200
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rai Ilnner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Dia.(mm) Φ270 Φ300 Φ300 Φ350 Φ350 Φ400 Φ400 Φ500 Φ500 Φ600 Φ600 Φ600 Φ600
Wheel Quantity(pcs) 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed(mm) 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power(kw) 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Running distance(m) 25 25 25 25 30 30 50 50 50 50 50 50 50
Max Wheel load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Wight(t) 2.5 3.5 4 5.2 5.6 6.2 6.5 7.3 7.8 10.5 12.3 14.1 26.2
Recommend Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100


QU100


Products Deatils

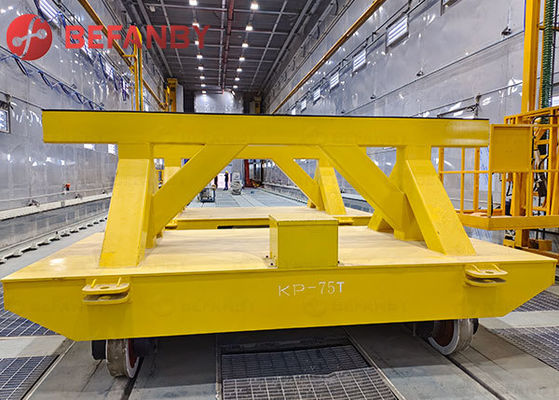

Best Price Mold Factory Uses Scissor Lift Material Transfer Cart 1

Product Feature

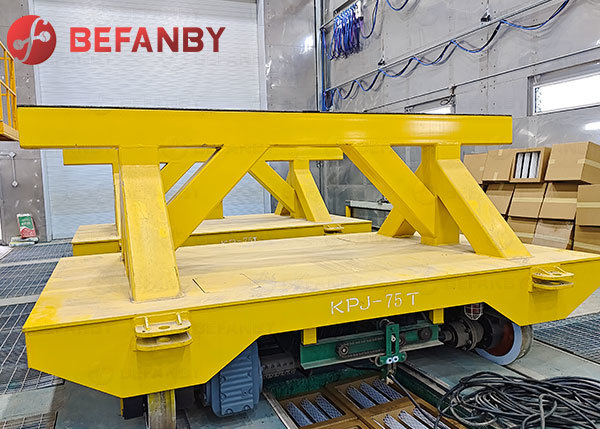

Best Price Mold Factory Uses Scissor Lift Material Transfer Cart 2

Shipping

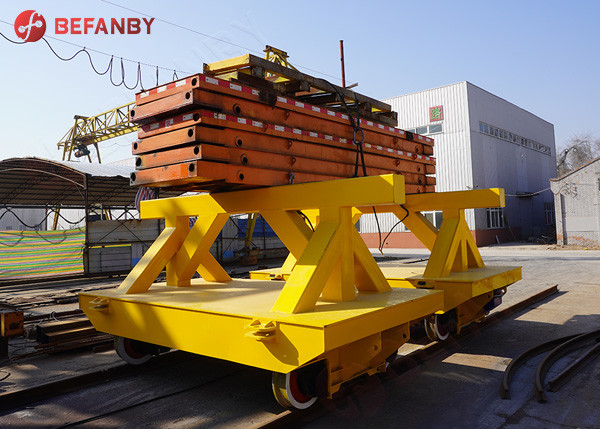

Best Price Mold Factory Uses Scissor Lift Material Transfer Cart 3

Company Profile

Xinxiang Hundred Percent Electrical And Mechanical Co., Ltd. is a professional and international handling equipment company integrating R&D, design, production and sales. It has a modern management team, technical team and production technician team.

Founded in September 2003, the company is located in Xinxiang city, Henan province, covering an area of 33,300 square meters. It has a modern large-scale factory building, world-advanced production equipment and office equipment. The company has more than 150 employees, including 8 engineers and more than 20 technicians. The company has a first-class research and design team, which can undertake the design and production of various non-standard handling equipment.

BEFANBY can not only provide transfer cart quotations, but also provide you with satisfactory handling solutions.

Best Price Mold Factory Uses Scissor Lift Material Transfer Cart 4

Best Price Mold Factory Uses Scissor Lift Material Transfer Cart 5

Best Price Mold Factory Uses Scissor Lift Material Transfer Cart 6

Related Products

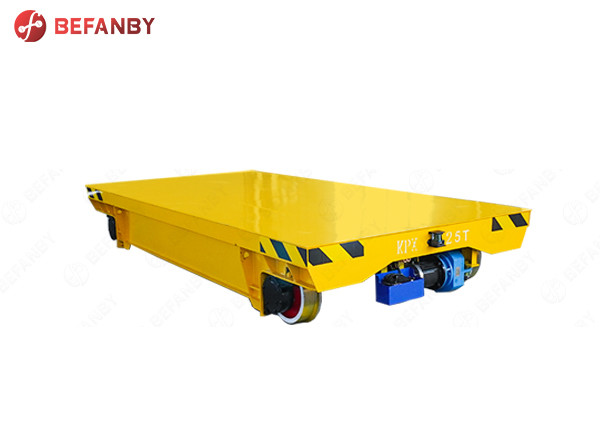

Best Price Mold Factory Uses Scissor Lift Material Transfer Cart 7

We can customize different types of models according to the actual needs of customers. The table can be equipped with a variety of special devices, such as rollers, chain plates, chains, lifting, etc. The size and tonnage of the table can be adjusted according to the conditions of the transported materials.



Product Tap: Material Handling Cart , Rail Transfer Cart
