Support Customized Rail Transfer Cart Are Used In A Variety Of Situations

  • Support Customized Rail Transfer Cart Are Used In A Variety Of Situations
  • Support Customized Rail Transfer Cart Are Used In A Variety Of Situations
  • Support Customized Rail Transfer Cart Are Used In A Variety Of Situations
  • Support Customized Rail Transfer Cart Are Used In A Variety Of Situations
Lugar de origen Henan, China
Nombre de la marca BEFANBY
Certificación CE,SGS,ISO9001
Número de modelo Carril
Cantidad de orden mínima 1 juego/juegos
Precio Negociable
Detalles de empaquetado El carro de losas motorizado será empacado por la lona, las piezas serán enviadas en la caja de made
Tiempo de entrega Entrega de 20-30 días como de costumbre
Condiciones de pago LC, T/T, Unión Occidental
Capacidad de la fuente 1500 set/sets, por año

Éntreme en contacto con gratis las muestras y los vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Color Personalizado Garantía 24 meses
Capacidad de carga Personalizado Fuente de alimentación Funciona con pilas
Puerto Qingdao/Tianjin/Shanghai Solicitud Industria pesada, al aire libre, construcción
Materiales Acero
Deja un mensaje
Descripción de producto

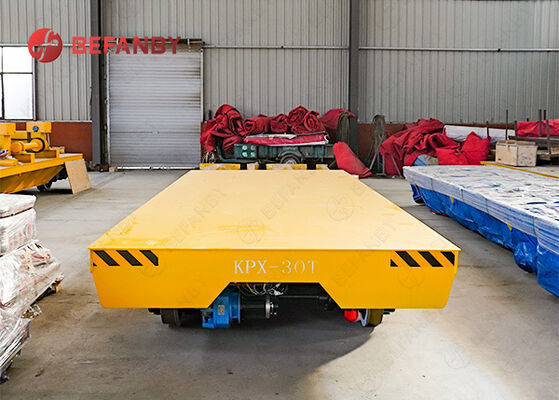

Support Customized Rail Transfer Cart Are Used In A Variety Of Situations
Track trucks are professional handling equipment designed for efficient transportation of materials in factories and enterprises. They run on fixed tracks and have the advantages of strong carrying capacity, stable walking, and accurate positioning. They are widely used in material turnover and docking operations between factory workshops, warehousing logistics, and production lines. The equipment operates smoothly and reliably, which can effectively reduce the intensity of manual handling and improve overall production efficiency. Secondly, the track can be customized into various forms (S-shaped, curved, etc.).

Support Customized Rail Transfer Cart Are Used In A Variety Of Situations 0


Product Details

Support Customized Rail Transfer Cart Are Used In A Variety Of Situations 1


Our Company
Support Customized Rail Transfer Cart Are Used In A Variety Of Situations 2
Support Customized Rail Transfer Cart Are Used In A Variety Of Situations 3
Support Customized Rail Transfer Cart Are Used In A Variety Of Situations 4
Customized Support

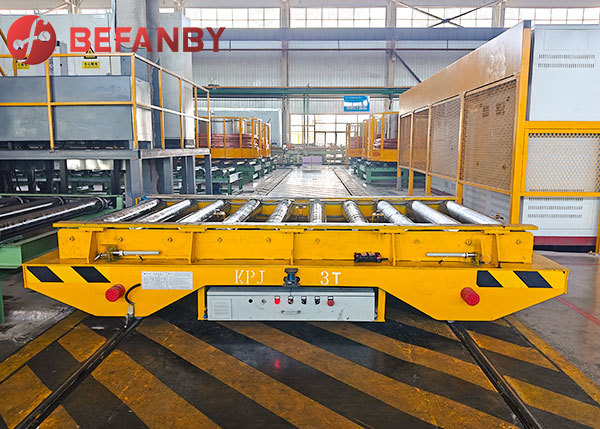

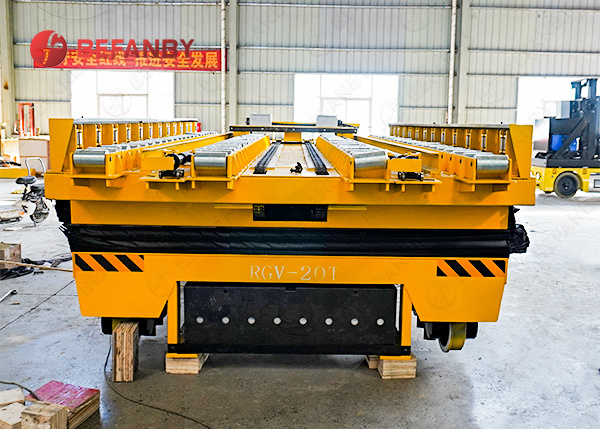

The entire vehicle supports various forms of customization. The table structure can be flexibly designed according to different material characteristics and usage conditions for transportation, such as flat plate type, roller type, coil rack type or a lifting structure table to meet the transportation needs of molds, round materials, coil materials and other materials. The load capacity, vehicle body size, operating speed and control method can all be configured as needed, fully fitting the customer's actual site conditions.
Support Customized Rail Transfer Cart Are Used In A Variety Of Situations 5
Product Specifications
Model KPX-10t KPX-16t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load (t) 10 16 25 30 40 50 63 80 100 150
Table Length L (mm) 3600 4000 4500 4500 5000 5500 5600 6000 6500 10000
Table Width W (mm) 2000 2000 2200 2200 2500 2500 2500 2600 2800 3000
Table Height H (mm) 500 550 600 600 650 650 700 800 900 1200
Wheel Base (mm) 2600 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauge (mm) 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter (mm) 300 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 50 75 75 75 75
Running Speed (m/min) 25 20 20 20 20 20 20 20 20 18
Motor Power (kW) 2 2.2 3.5 4 5 6.3 8 10 15 15
Battery Capacity (Ah) 160 180 250 250 300 330 400 400 440 600
Battery Voltage (V) 48 48 48 48 48 48 48 72 72 72
Max Wheel Load (kN) 42.6 64.5 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight (t) 4.2 5.5 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8
Positive feedback

Support Customized Rail Transfer Cart Are Used In A Variety Of Situations 6


Related Products
Support Customized Rail Transfer Cart Are Used In A Variety Of Situations 7
Frequently Asked Questions
How can I operate the transfer cart?
We provide comprehensive English user manuals and parts documentation that will be delivered with your equipment.
How to ensure your product quality?
We provide rail installation drawings, rail foundation construction drawings, and technical guidance at no additional cost. If needed, our installation engineers can visit your facility to guide the installation process.
Whether you can offer customized transfer cart?
Yes, we are a manufacturer with our own engineering team that can create customized designs according to your specific requirements. Please share your needs with us.
Whether there is professional technician assist our installation?
Yes, we have a professional installation team with international experience. If you require on-site technical assistance, please inform us in advance so we can arrange for our technicians.
