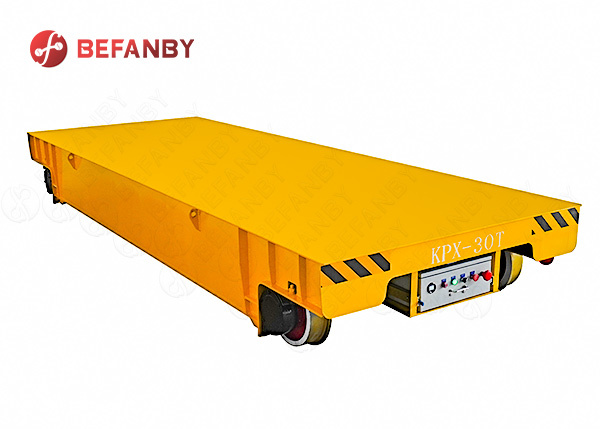

30 Ton Battery Transfer Cart With Cast Steel Wheels

  • 30 Ton Battery Transfer Cart With Cast Steel Wheels
  • 30 Ton Battery Transfer Cart With Cast Steel Wheels
  • 30 Ton Battery Transfer Cart With Cast Steel Wheels
  • 30 Ton Battery Transfer Cart With Cast Steel Wheels
  • 30 Ton Battery Transfer Cart With Cast Steel Wheels
  • 30 Ton Battery Transfer Cart With Cast Steel Wheels
Lugar de origen Henán, China
Nombre de la marca BEFANBY
Certificación CE,SGS,ISO9001
Número de modelo kpx
Cantidad de orden mínima 1 juego/juegos
Precio Negociable
Detalles de empaquetado La plataforma de elevación será empacada por la lona, las piezas serán enviadas en la caja de madera
Tiempo de entrega Entrega de 20-30 días como de costumbre
Condiciones de pago LC, T/T, Unión Occidental
Capacidad de la fuente 1500 set/sets, por año
Datos del producto
Color Personalizado Nombre del producto Plataforma de trabajo aéreo con tijeras de batería flexible
Capacidad de carga Personalizado Fuente de alimentación Funciona con pilas
Puerto Qingdao/Tianjin/Shanghai Solicitud Industria pesada, al aire libre, construcción
Materiales acero
Deja un mensaje
Descripción de producto

30 Ton Battery Transfer Cart With Cast Steel Wheels

Product Description

Battery-powered rail transport vehicles are electric transport equipment that runs on fixed tracks, powered by batteries. They are widely used in heavy-duty material transport in industries such as machinery manufacturing, steel metallurgy, and mold processing. The entire vehicle is electrically driven, requiring no external cables, offering flexible operation and meeting the transportation needs of long distances and multiple workstations within a workshop.





30 Ton Battery Transfer Cart With Cast Steel Wheels 0

Product Parameter

Model KPT-2T KPT-5T KPT-10T KPT-16T KPT-20T KPT-25T KPT-30T KPT-40T KPT-50T KPT-63T KPT-80T KPT-100T KPT-150
Rated load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Heigth(H) 500 550 550 600 600 650 650 700 700 800 900 1000 1200
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rai Ilnner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Dia.(mm) Φ270 Φ300 Φ300 Φ350 Φ350 Φ400 Φ400 Φ500 Φ500 Φ600 Φ600 Φ600 Φ600
Wheel Quantity(pcs) 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed(mm) 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power(kw) 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Running distance(m) 25 25 25 25 30 30 50 50 50 50 50 50 50
Max Wheel load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Wight(t) 2.5 3.5 4 5.2 5.6 6.2 6.5 7.3 7.8 10.5 12.3 14.1 26.2
Recommend Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100


QU100


Company Profile

Xinxiang Hundred Percent Electrical And Mechanical Co., Ltd. is a professional and international handling equipment company integrating R&D, design, production and sales. It has a modern management team, technical team and production technician team.

Founded in September 2003, the company is located in Xinxiang city, Henan province, covering an area of 33,300 square meters. It has a modern large-scale factory building, world-advanced production equipment and office equipment. The company has more than 150 employees, including 8 engineers and more than 20 technicians. The company has a first-class research and design team, which can undertake the design and production of various non-standard handling equipment.

BEFANBY can not only provide transfer cart quotations, but also provide you with satisfactory handling solutions.

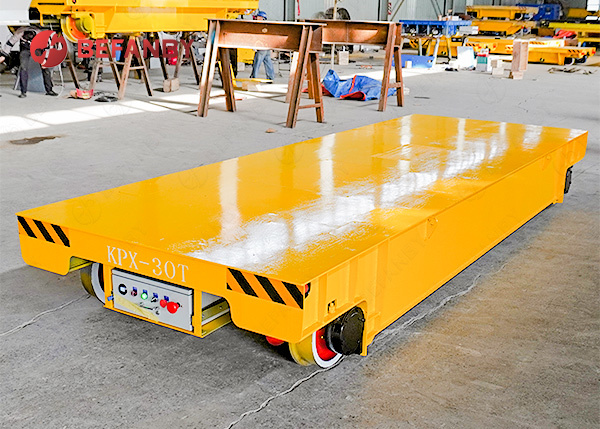

30 Ton Battery Transfer Cart With Cast Steel Wheels 1

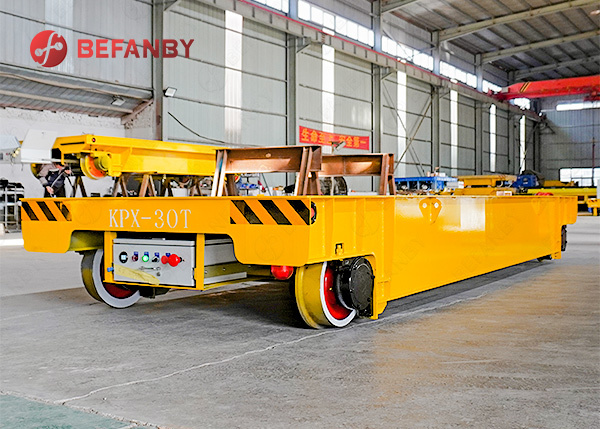

30 Ton Battery Transfer Cart With Cast Steel Wheels 2

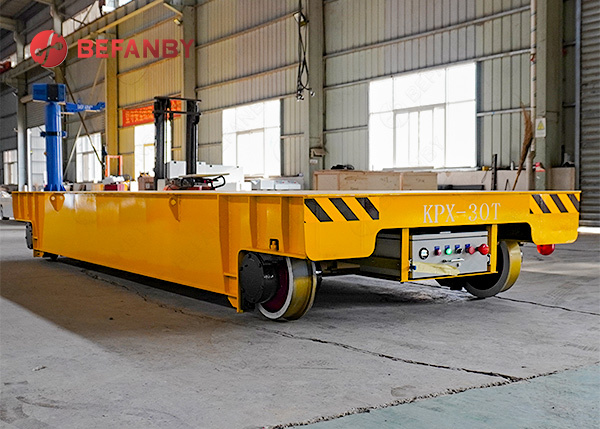

30 Ton Battery Transfer Cart With Cast Steel Wheels 3

Product Details

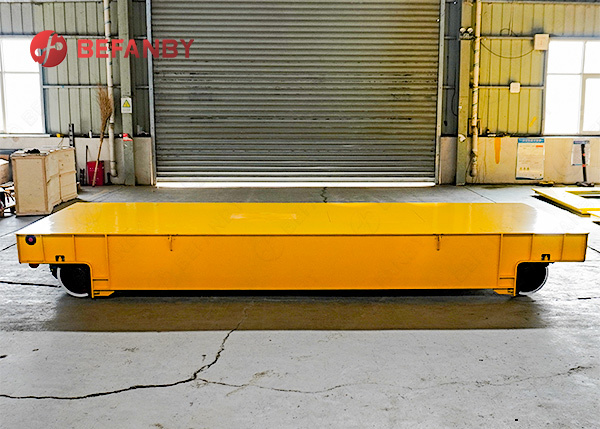

30 Ton Battery Transfer Cart With Cast Steel Wheels 4

This rail-mounted transfer cart uses high-strength cast steel wheels, offering excellent wear resistance and load-bearing capacity. The wheels undergo professional heat treatment, enabling them to withstand frequent start-stop operations and maintain stable operation during heavy-duty transport. Compared to ordinary wheels, cast steel wheels have stronger impact resistance, effectively reducing wear and tear over long-term use and extending equipment lifespan.

Product Feature

30 Ton Battery Transfer Cart With Cast Steel Wheels 5

The transfer cart uses a battery-powered system, making operation safer and more convenient. Battery capacity can be customized according to usage frequency and transport distance, supporting long-term continuous operation. The equipment can also be equipped with an intelligent charging system, making charging convenient, maintenance simple, and effectively improving factory transportation efficiency.

Shipping

30 Ton Battery Transfer Cart With Cast Steel Wheels 6

Related Products


30 Ton Battery Transfer Cart With Cast Steel Wheels 7

FAQ

1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer car?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.


Product Tap: Material Handling Cart , Rail Transfer Cart
