Custom Designed Cart Body 16t Rail Transfer Trolley

  • Custom Designed Cart Body 16t Rail Transfer Trolley
  • Custom Designed Cart Body 16t Rail Transfer Trolley
  • Custom Designed Cart Body 16t Rail Transfer Trolley
  • Custom Designed Cart Body 16t Rail Transfer Trolley
  • Custom Designed Cart Body 16t Rail Transfer Trolley
  • Custom Designed Cart Body 16t Rail Transfer Trolley
Lugar de origen Henán, China
Nombre de la marca BEFANBY
Certificación CE,SGS,ISO9001
Número de modelo kpx
Cantidad de orden mínima 1 juego/juegos
Precio Negociable
Detalles de empaquetado El carrito motorizado será empacado por la lona, las piezas serán enviadas en la caja de madera de a
Tiempo de entrega 40-50 días como entrega usual, 30-40days para la entrega urgente
Condiciones de pago LC, T/T, Unión Occidental
Capacidad de la fuente 800 fijados/sistemas, por año
Datos del producto
Material Q235 Color Personalizado
Solicitud Área industrial, manipulación de tuberías de acero Velocidad de carrera 0-20m/minuto
Distancia de carrera Ilimitado Garantía 24 meses
Puerto Qingdao/Tianjin/Shanghai Capacidad de carga Carga útil de 1 a 1000 toneladas
Tipo de operación Colgante de mano + mando a distancia Fuente de alimentación Funciona con pilas
Ventaja Más de 23 años de experiencia en el Transporte de Tramos de Buque entre Edificios de Astillero Potencia opcional fuente de alimentación del cable, línea de carretilla, carril de la baja tensión, diesel, etc.
Deja un mensaje
Descripción de producto

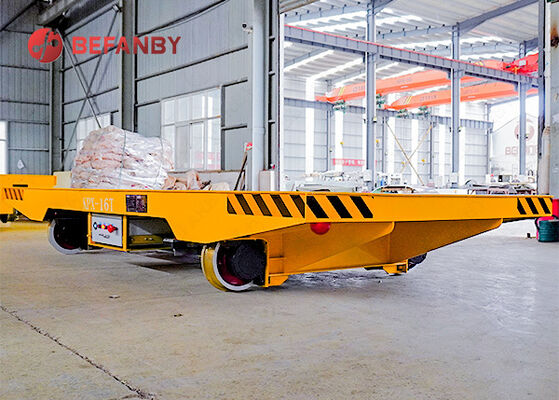

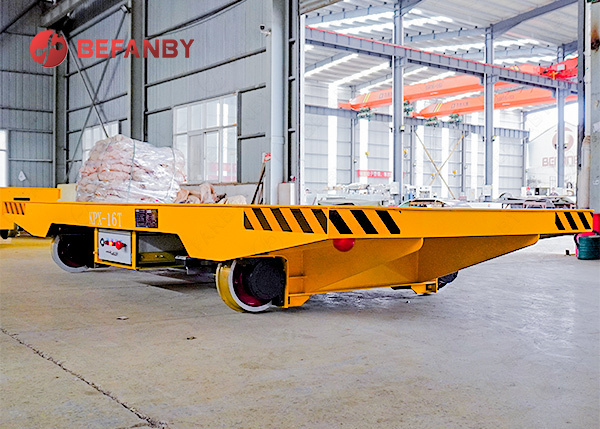

Custom Designed Cart Body 16t Rail Transfer Trolley


The rail transfer cart featured here boasts a load capacity of up to 16 tons and utilizes a high-strength steel frame design, ensuring robust load-bearing performance. Through professional structural analysis and optimization, the cart effectively distributes load pressure, maintaining stable operation even during the long-term transport of large, heavy materials.
Furthermore, the cart's dimensions, platform configuration, and load capacity can be customized to suit specific on-site operating conditions, meeting the unique requirements of diverse transport scenarios.



Custom Designed Cart Body 16t Rail Transfer Trolley 0

battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply

All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.

battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply


Custom Designed Cart Body 16t Rail Transfer Trolley 1

battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
Detailed Images

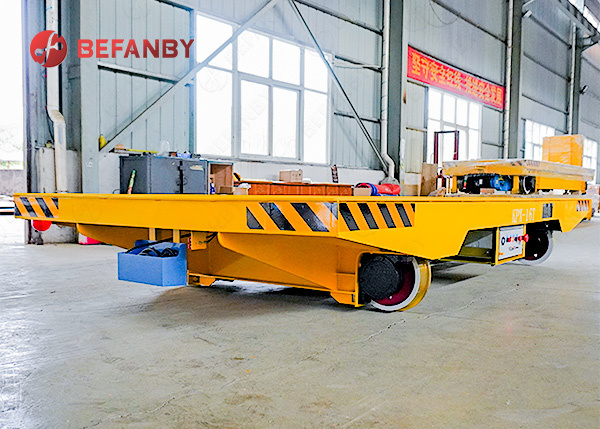

Custom Designed Cart Body 16t Rail Transfer Trolley 2


It operates smoothly and adapts to a wide range of working conditions. The transport vehicle utilizes a fixed-rail guidance system that effectively prevents deviation and slippage, making it particularly suitable for fixed-route transport in settings such as production workshops, warehouses, and assembly lines. The design combines cast-steel wheels with a DC motor drive system, ensuring smooth startup, steady-speed operation, and precise positioning—even when fully loaded.
For enterprises frequently transporting heavy workpieces, rail-based transport not only boosts efficiency but also minimizes the risks associated with manual handling, thereby enhancing overall operational safety.

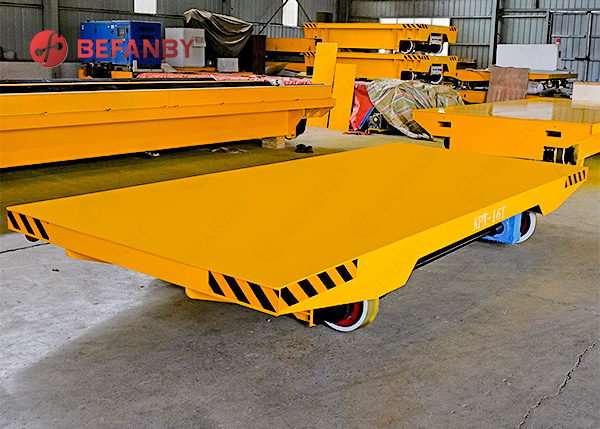

Custom Designed Cart Body 16t Rail Transfer Trolley 3

Technique Parameter

Model KPX-10t KPX-16t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 10 16 25 30 40 50 63 80 100 150
Table size Length(L) 3600 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 2000 2000 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 500 550 600 600 650 650 700 800 900 1200
Wheel Base 2600 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 300 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 75 75 75 75
Running Speed 25 20 20 20 20 20 20 20 20 18
Motor Power 2 2.2 3.5 4 5 6.3 8 10 15 15
Battery Capacity 160 180 250 250 300 330 400 400 440 600
Battery Voltage 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 42.6 64.5 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 4.2 5.5 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8


Our Company

Custom Designed Cart Body 16t Rail Transfer Trolley 4

Custom Designed Cart Body 16t Rail Transfer Trolley 5

Custom Designed Cart Body 16t Rail Transfer Trolley 6

FAQ

1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer cart?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
